ABODE: Sleeper Trailer w/Galley
TOTES: Cargo Trailer
* Weights shown for standard configuration, no options added.
** Weights shown with 13" Tires installed.
Use the chart below to determine the variable heights for each tire size.
13" Tires | 14" Tires | 15" Tires | ||
---|---|---|---|---|
Dimensions refer to the drawing above.* | ||||
dim A | 68.25" | 69.50" | 70.75" | |
dim B | 63.50" | 64.75" | 66.00" | |
dim C | 17.05" | 18.75" | 20.00" | |
dim D | 17.05" | 18.75" | 20.00" | |
dim E | 78.00" | 79.25" | 80.50" | |
dim F | 74.00" | 75.25" | 76.50" | |
dim CT ** | 36.25" | 37.50" | 38.75" | |
dim GC ** | 11.25" | 12.25" | 12.75" | |
Tire Size | 175/80-13 | 205/75-14 | 205/75-15 | |
Speed Rating | 81 mph | 81 mph | 81 mph | |
* All dimensions are approximate. ** CT is Counter Top height measured from the ground. ** GC is Ground Clearance to the lowest part of the axle. Ground Clearance (GC) dimension does not include leaf springs or leaf spring hardware, which are below the axle, near the tires. |
Coupler Height (C) is determined by the tire size you select. A receiver hitch insert will be needed to adjust the hitch ball height.
Receiver hitch inserts come in various sizes of "Drop" and "Rise."
Hitch height should ideally be within plus 1.5" or minus 0.5" of Dimension C, for optimal towing and appearance.
Hitch height a couple inches outside this range will not hurt the trailer or affect it's handling, it will just won't look as nice.
Turn a "Drop" insert over and it becomes a "Rise." Hitch inserts usually come in about 2" increments. Inserts with an offset over 6 inches are hard to find. Class I and Class II hitches, with 1 1/4" square receiver tubes, are more difficult to find in larger offsets.
If you are still having trouble finding the offset you need, contact Road Toad and we may be able to help.

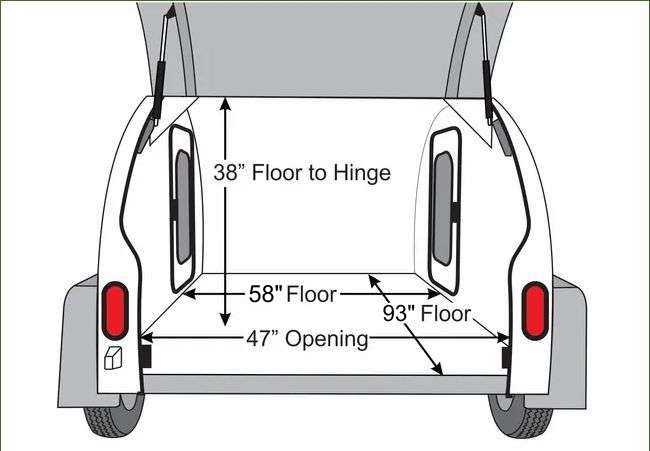

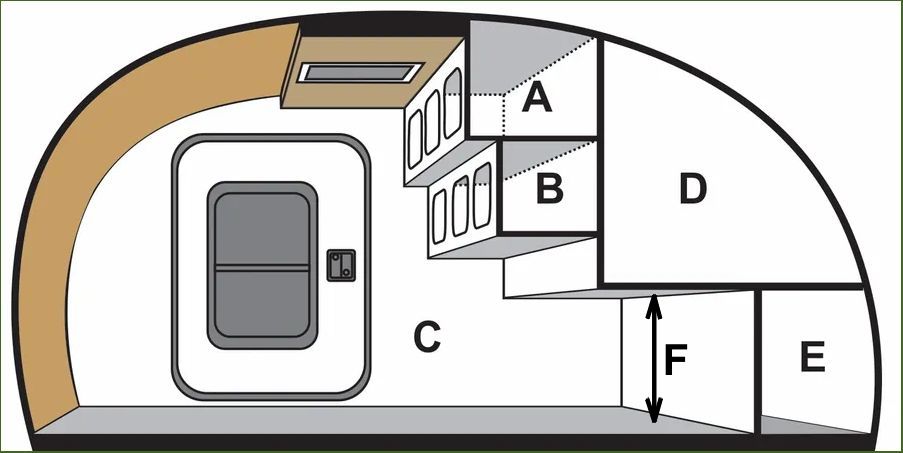

Large rear hatch and two side doors for easy access. Open interior for maximum use flexibility.
Galley - (Under Hatch )
